Nacos集群和持久化配置

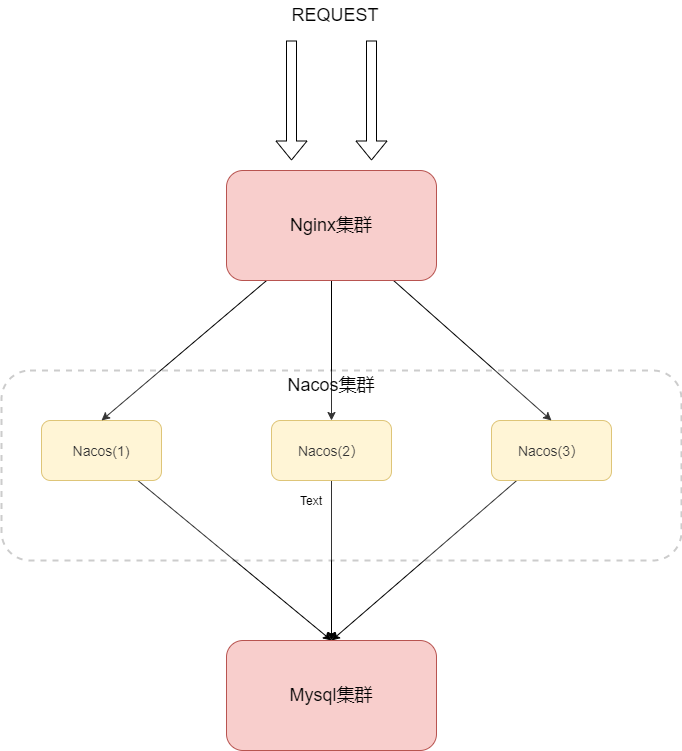

最终架构图💨

nacos_18

说明💨

TIP

默认Nacos使用嵌入式数据库实现数据的存储。所以,如果启动多个默认配置下的Nacos节点,数据存储是存在一致性问题的。为了解决这个问题,Nacos采用了集中式存储的方式来支持集群化部署,目前只支持MySQL的存储。

Nacos支持三种部署模式🕳

  • 单机模式-用于测试和单机试用。
  • 集群模式–用于生产环境,确保高可用。
  • 多集群模式-用于多数据中心场景。

单机模式支持mysql

在0.7版本之前,在单机模式时nacos使用嵌入式数据库实现数据的存储,不方便观察数据存储的基本情况。0.7版本增加了支持mysql数据源能力,具体的操作步骤:

1.安装数据库,版本要求:5.6.5+
2.初始化mysql数据库,数据库初始化文件: nacos-mysql.sql
3.修改conf/application.properties文件,增加支持mysql数据源配置(目前只支持mysql),添加mysql数据源的url、用户名和密码。
spring.datasource.platform=mysql

db.num=1
db.ur1.0=jdbc:mysql://11.162.196.16:3306/nacos_devtest?characterEncoding=utf8&connectTimeout=1006
db.user=nacos_devtest
db.password=youdontknow

再以单机模式启动nacos,nacos所有写嵌入式数据库的数据都写到了mysql

集群模式

  • Nacos持久化配置解释
    • Nacos默认自带的是嵌入式数据库derby
    • derby到mysql切换配置步骤
      • 1、nacos-server-1.1.4\nacos\conf目录下找到sql脚本 -> nacos-mysql.sql 执行脚本
      • 2、nacos-server-1.1.4\nacos\conf目录下找到application.properties,修改mysql有关配置
    • 启动Nacos,可以看到是个全新的空记录界面,以前是记录进derby

Linux版本Nacos+Mysql生产环境配置(集群)

1、前期准备

nacos-linux上配置.zipopen in new window

1个Nginx + 3个Nacos(linux版本) + 1个Mysql(mysql5.7)

2、linux上的mysql建库,导入脚本

G:\java\SpringCloud2020\nacos\nacos\conf\nacos-mysql.sql

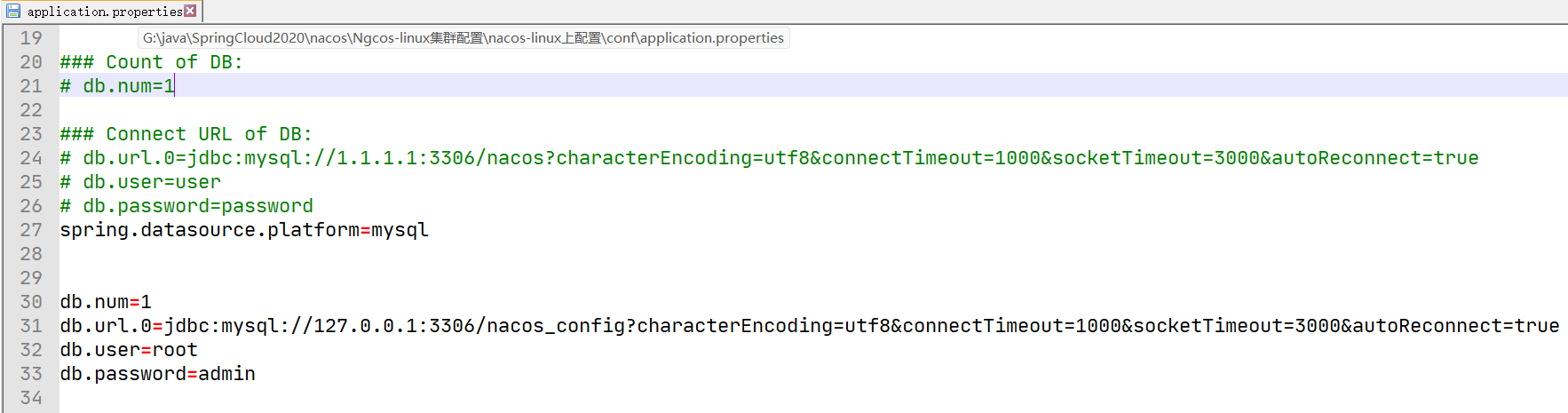

3、修改Nacos的Conf目录下application.properties

nacos_19

4、Linux服务器上nacos的集群配置cluster.conf

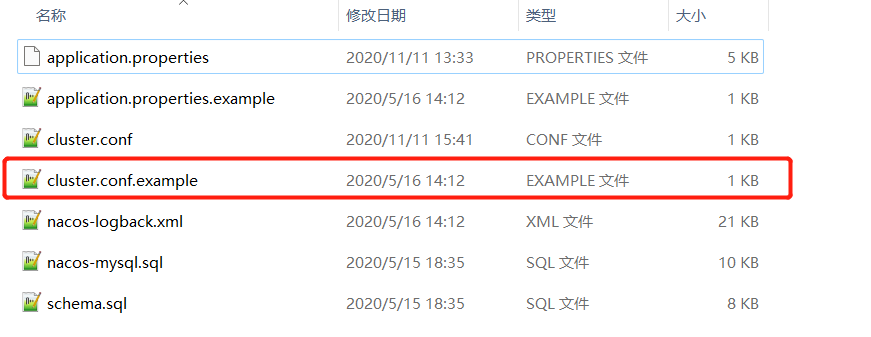

conf目录下有一个cluster.conf.example文件,如下图:

nacos_20

cluster.conf.example这个文件复制一份为cluster.conf放在conf目录下,其中配置的内容如下:

> cp cluster.conf.example cluster.conf

> vim cluster.conf

192.168.111.144:3333
192.168.111.144:4444
192.168.111.144:5555

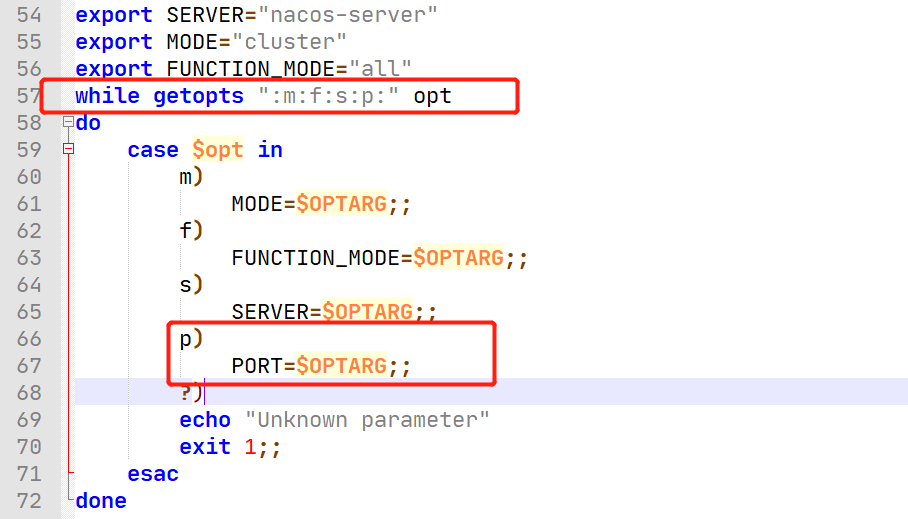

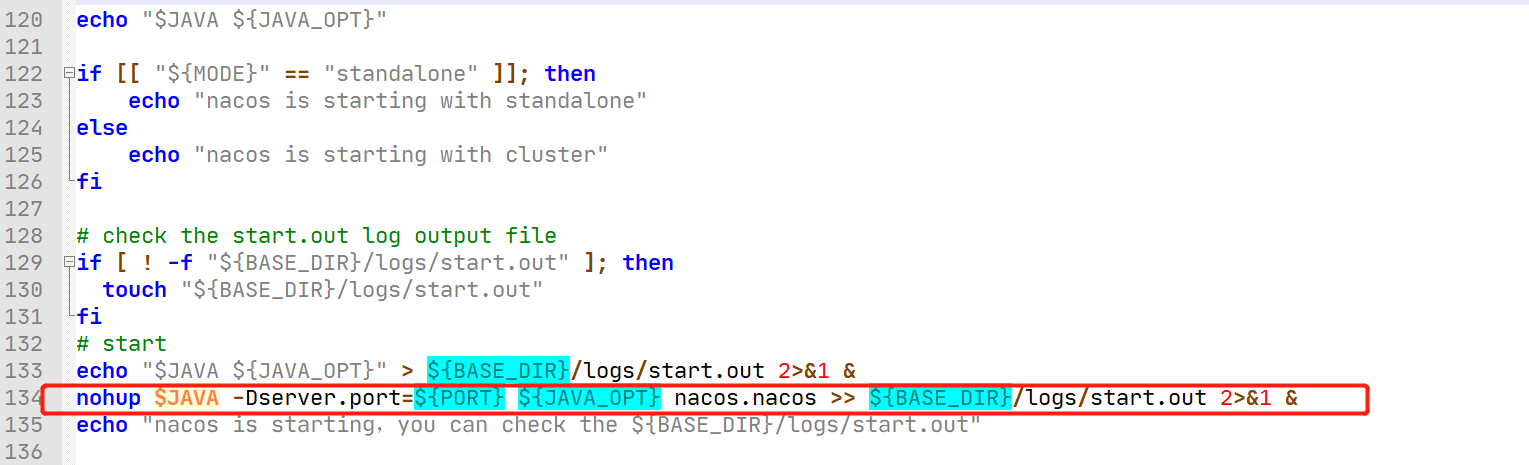

5、编辑Nacos的启动脚本startup.sh,使他能接收不同的启动端口

nacos_23nacos_24

完整startup.sh

#!/bin/sh

# Copyright 1999-2018 Alibaba Group Holding Ltd.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at

#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

cygwin=false
darwin=false
os400=false
case "`uname`" in
CYGWIN*) cygwin=true;;
Darwin*) darwin=true;;
OS400*) os400=true;;
esac
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/opt/taobao/java
[ ! -e "$JAVA_HOME/bin/java" ] && unset JAVA_HOME

if [ -z "$JAVA_HOME" ]; then
  if $darwin; then

    if [ -x '/usr/libexec/java_home' ] ; then
      export JAVA_HOME=`/usr/libexec/java_home`

    elif [ -d "/System/Library/Frameworks/JavaVM.framework/Versions/CurrentJDK/Home" ]; then
      export JAVA_HOME="/System/Library/Frameworks/JavaVM.framework/Versions/CurrentJDK/Home"
    fi
  else
    JAVA_PATH=`dirname $(readlink -f $(which javac))`
    if [ "x$JAVA_PATH" != "x" ]; then
      export JAVA_HOME=`dirname $JAVA_PATH 2>/dev/null`
    fi
  fi
  if [ -z "$JAVA_HOME" ]; then
        error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)! jdk8 or later is better!"
  fi
fi

export SERVER="nacos-server"
export MODE="cluster"
export FUNCTION_MODE="all"
while getopts ":m:f:s:p:" opt
do
    case $opt in
        m)
            MODE=$OPTARG;;
        f)
            FUNCTION_MODE=$OPTARG;;
        s)
            SERVER=$OPTARG;;
		p)
			PORT=$OPTARG;;
        ?)
        echo "Unknown parameter"
        exit 1;;
    esac
done

export JAVA_HOME="/usr/local/java1.8/jdk1.8"
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=`cd $(dirname $0)/..; pwd`
export DEFAULT_SEARCH_LOCATIONS="classpath:/,classpath:/config/,file:./,file:./config/"
export CUSTOM_SEARCH_LOCATIONS=${DEFAULT_SEARCH_LOCATIONS},file:${BASE_DIR}/conf/

#===========================================================================================
# JVM Configuration
#===========================================================================================
if [[ "${MODE}" == "standalone" ]]; then
    JAVA_OPT="${JAVA_OPT} -Xms512m -Xmx512m -Xmn256m"
    JAVA_OPT="${JAVA_OPT} -Dnacos.standalone=true"
else
    JAVA_OPT="${JAVA_OPT} -server -Xms512m -Xmx512m -Xmn256m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"
    JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=${BASE_DIR}/logs/java_heapdump.hprof"
    JAVA_OPT="${JAVA_OPT} -XX:-UseLargePages"

fi

if [[ "${FUNCTION_MODE}" == "config" ]]; then
    JAVA_OPT="${JAVA_OPT} -Dnacos.functionMode=config"
elif [[ "${FUNCTION_MODE}" == "naming" ]]; then
    JAVA_OPT="${JAVA_OPT} -Dnacos.functionMode=naming"
fi


JAVA_MAJOR_VERSION=$($JAVA -version 2>&1 | sed -E -n 's/.* version "([0-9]*).*$/\1/p')
if [[ "$JAVA_MAJOR_VERSION" -ge "9" ]] ; then
  JAVA_OPT="${JAVA_OPT} -Xlog:gc*:file=${BASE_DIR}/logs/nacos_gc.log:time,tags:filecount=10,filesize=102400"
else
  JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${JAVA_HOME}/lib/ext"
  JAVA_OPT="${JAVA_OPT} -Xloggc:${BASE_DIR}/logs/nacos_gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M"
fi

JAVA_OPT="${JAVA_OPT} -Dloader.path=${BASE_DIR}/plugins/health,${BASE_DIR}/plugins/cmdb,${BASE_DIR}/plugins/mysql"
JAVA_OPT="${JAVA_OPT} -Dnacos.home=${BASE_DIR}"
JAVA_OPT="${JAVA_OPT} -jar ${BASE_DIR}/target/${SERVER}.jar"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} --spring.config.location=${CUSTOM_SEARCH_LOCATIONS}"
JAVA_OPT="${JAVA_OPT} --logging.config=${BASE_DIR}/conf/nacos-logback.xml"
JAVA_OPT="${JAVA_OPT} --server.max-http-header-size=524288"

if [ ! -d "${BASE_DIR}/logs" ]; then
  mkdir ${BASE_DIR}/logs
fi

echo "$JAVA ${JAVA_OPT}"

if [[ "${MODE}" == "standalone" ]]; then
    echo "nacos is starting with standalone"
else
    echo "nacos is starting with cluster"
fi

# check the start.out log output file
if [ ! -f "${BASE_DIR}/logs/start.out" ]; then
  touch "${BASE_DIR}/logs/start.out"
fi
# start
echo "$JAVA ${JAVA_OPT}" > ${BASE_DIR}/logs/start.out 2>&1 &
nohup $JAVA -Dserver.port=${PORT} ${JAVA_OPT} nacos.nacos >> ${BASE_DIR}/logs/start.out 2>&1 &
echo "nacos is starting,you can check the ${BASE_DIR}/logs/start.out"

6、Nginx的配置,由它作负载均衡nginx-linux上配置.zipopen in new window

upstream cluster{
	server 192.168.111.144:3333;
	server 192.168.111.144:4444;
	server 192.168.111.144:5555;
}

server{
	listen 8099;
	server_name  localhost;
    location / {
	    proxy_pass http://cluster;
    }
}

集群搭建完成💫

启动nacos 💨

./startup.sh -p 3333
./startup.sh -p 4444
./startup.sh -p 5555

查看nacos启动的个数:💨

ps -ef|grep nacos|grep -v grep |wc -l

通过nginx访问nacos:💨

http://192.168.111.144:1111/nacos/#/login

项目yml修改配置(示例9002):💨

server:
  port: 9002

spring:
  application:
    name: nacos-payment-provider
  cloud:
    nacos:
      discovery:
      	# 换成nginx的1111端口,做集群
        server-addr: 192.168.111.144:1111

management:
  endpoints:
    web:
      exposure:
        include: '*'

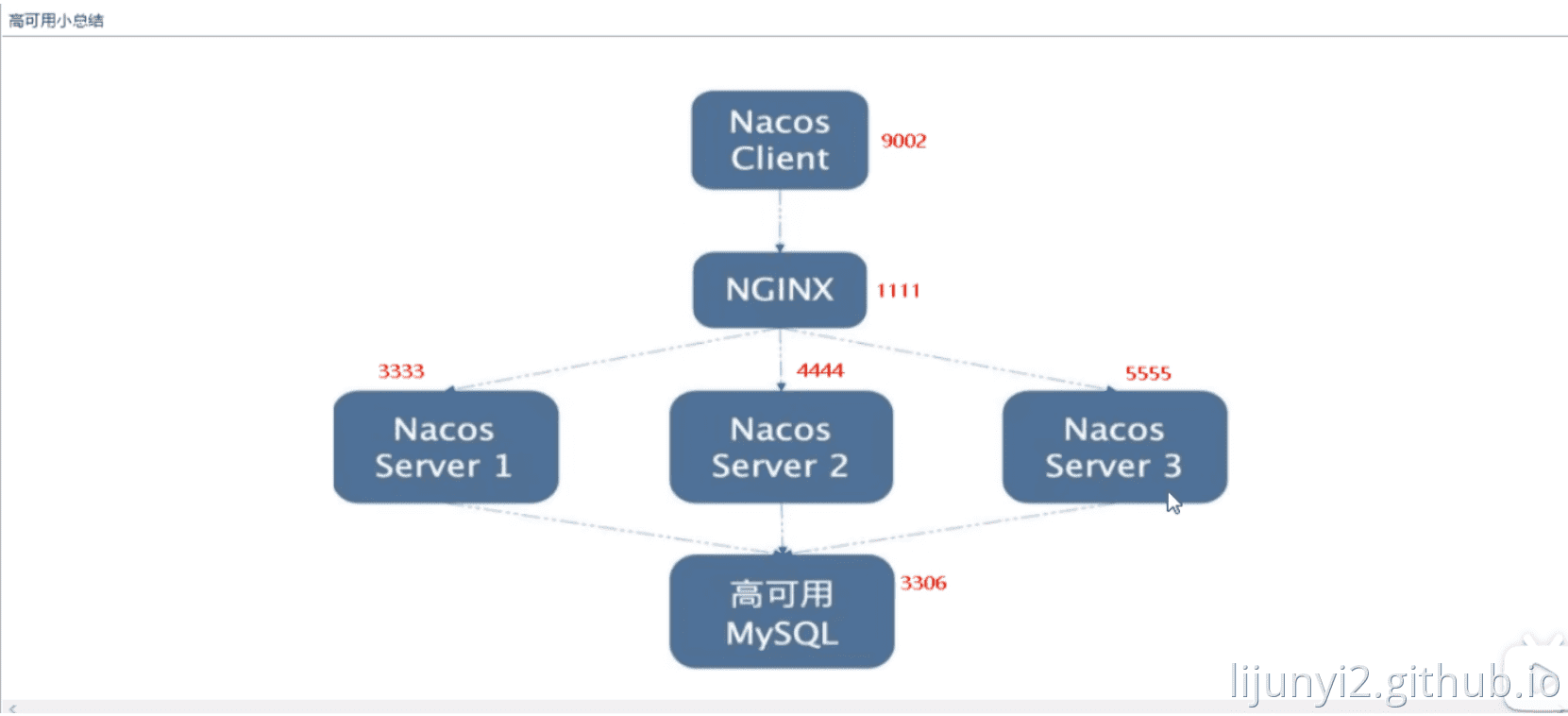

高可用小总结⭕

nacos_29
